Klassifizierung: UHS-I, Class 10 • lesen: 85mb/s • schreiben: 20MB/s • Besonderheiten: inkl. SD-Adapter

• Klassifizierung: Class 10 • lesen: 85MB/s • schreiben: 20MB/s EAN/UPC 3126170142252 Lieferumfang 1x microSDHC 16 GB Marke EMTEC Maße 0,1 x 1 cm Modell microSDHC Produkttyp micro SDHC Speicherkapazität 16 GB Übertragungsgeschwindigkeit (r) 85 MB/s Übertragungsgeschwindigkeit (w) 20 MB/sSchaltzyklen.00Watt.00Lumen.00Nennlebensdauer in Std..00kwh/1000h.00Opt. Umgebungstemperatur in \u00b0C.00

• Klassifizierung: UHS-I U1, Class 10 • Lesen: 80MB/s • Schreiben: 50MB/s • Besonderheiten: erweiterter Betriebstemperaturbereich (-25/85°C) • Herstellergarantie: drei JahreSchaltzyklen.00Watt.00Lumen.00Nennlebensdauer in Std..00kwh/1000h.00Opt. Umgebungstemperatur in \u00b0C.00

• Klassifizierung: UHS-3, Class 10 • lesen: 95MB/s • schreiben: 90MB/s • Besonderheiten: inkl. SD-Adapter Kompatibel mit allen Geräten, die SDXC-Standards unterstützen Lesegeschwindigkeit: Bis zu 100 MB/s Schreibgeschwindigkeit: Bis zu 95 MB/s UHS-I U3 V30 Kompatibilität Spezifikationen: A1/A2-Kompatibilität für die Speichererweiterung von Android-Geräten.

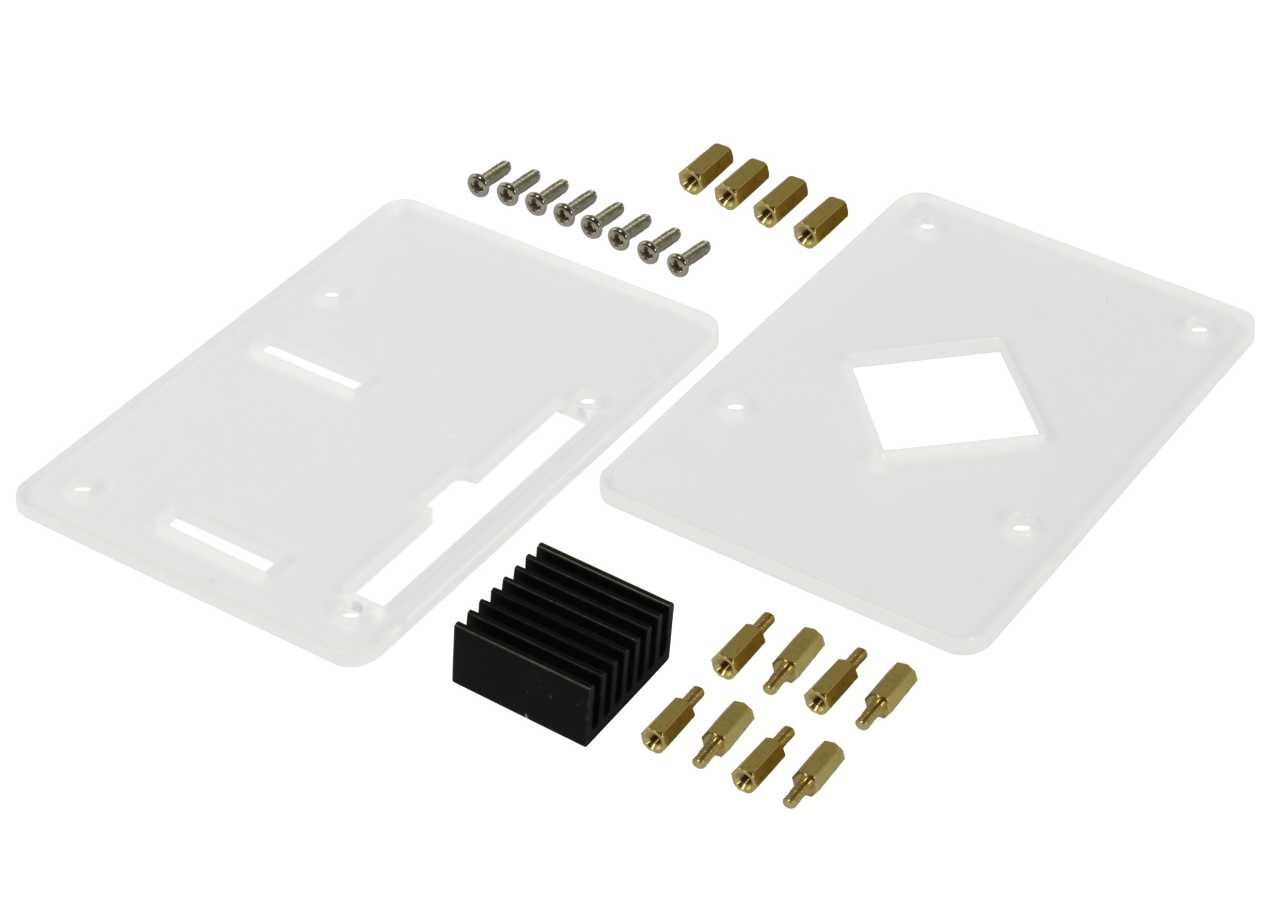

Rock Pi 4 zbh. Simple Acrylic Case + small heat sink

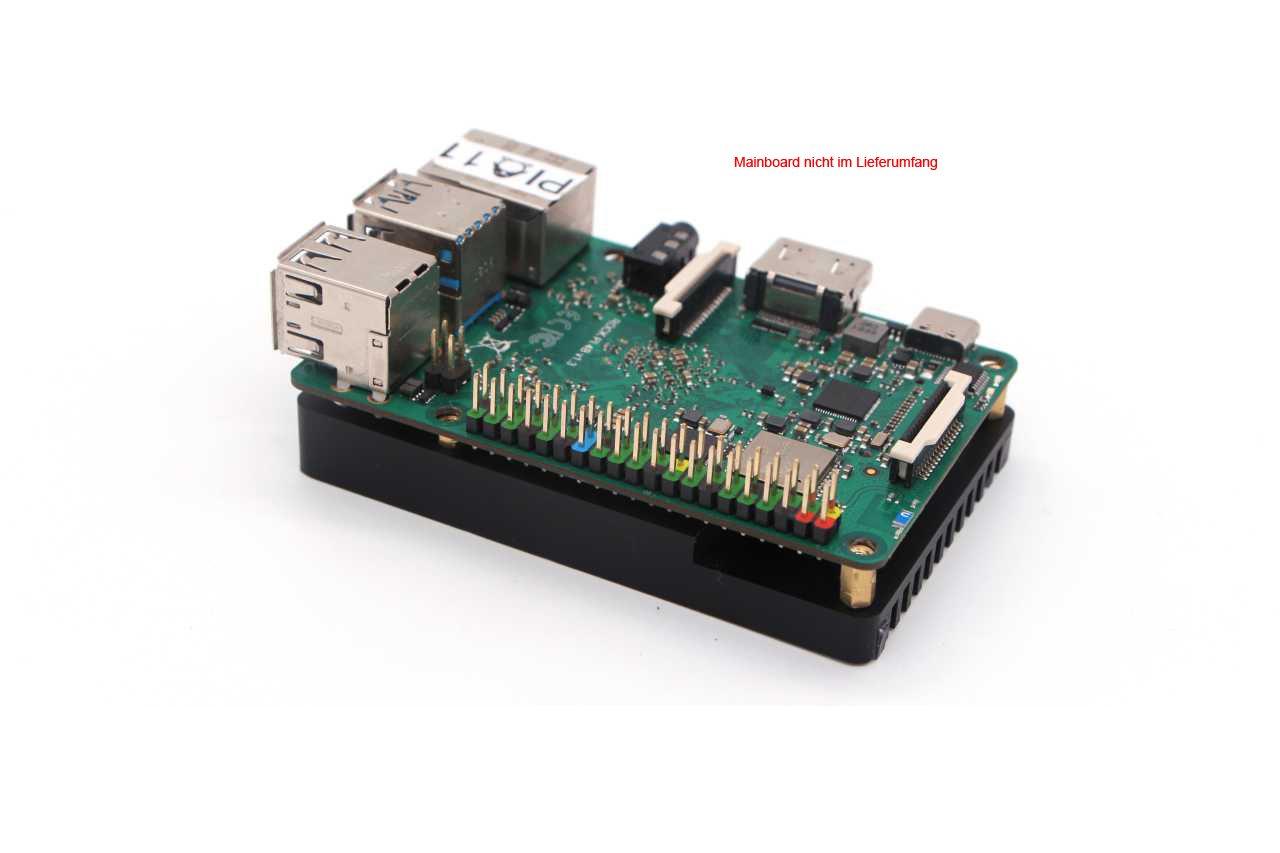

Rock Pi 4 zbh. Heatsink Kühler Kühlkörper nicht für Rock Pi 4C geeignet Abmessungen 85x55x15 inkl. Abstandshalter

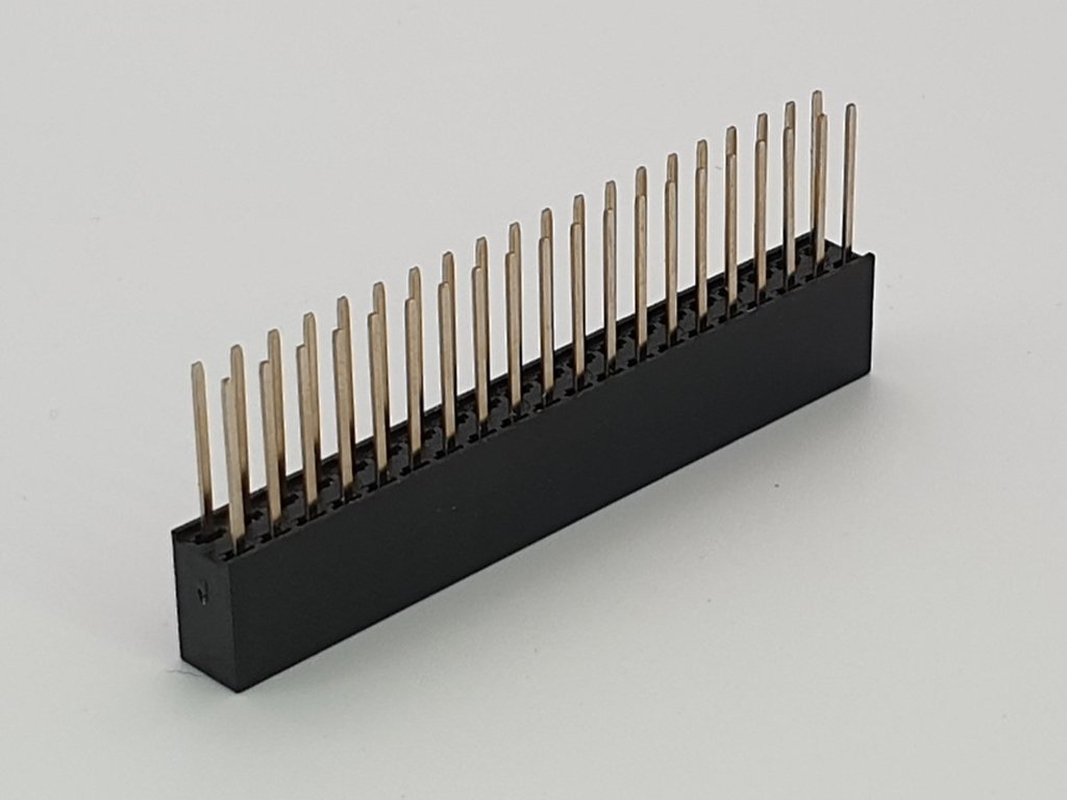

Platine zum Adaptieren der GPIOs auf ein Steckbrett Diese 40-polige Erweiterungsleiste verlängert die GPIO-Stifte, um sie oben auf dem Acrylgehäuse oder anderen ROCK PI 4-Gehäusen zu verwenden. Montieren Sie z.B. ROCK PI development HAT oder USB-TTL Debug-Kabel einfach oben auf Ihre Gehäuse, ohne die "Verbindung" zu den GPIO-Features zu verlieren! Bitte beachten Sie! Dieses Produkt ist bereits in den folgenden Produkten enthalten: ecoPI Easycase Entwickler-Gehäuse ROCK PI 4 Prototyping HAT

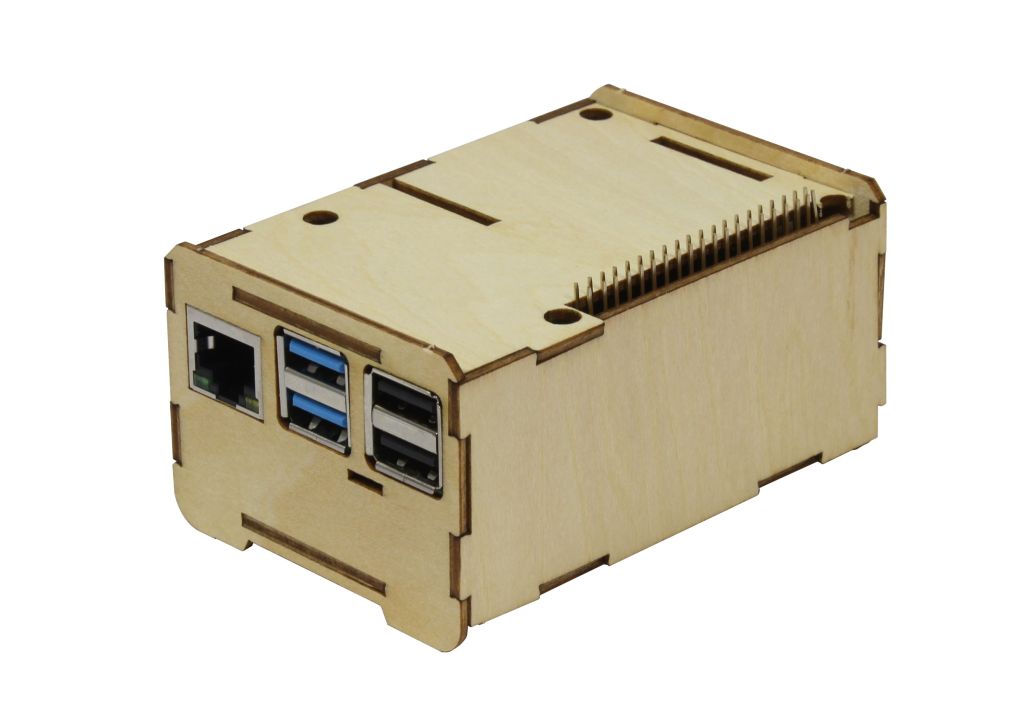

Rock Pi 4 zbh. Wood Eco Easy Case Developer

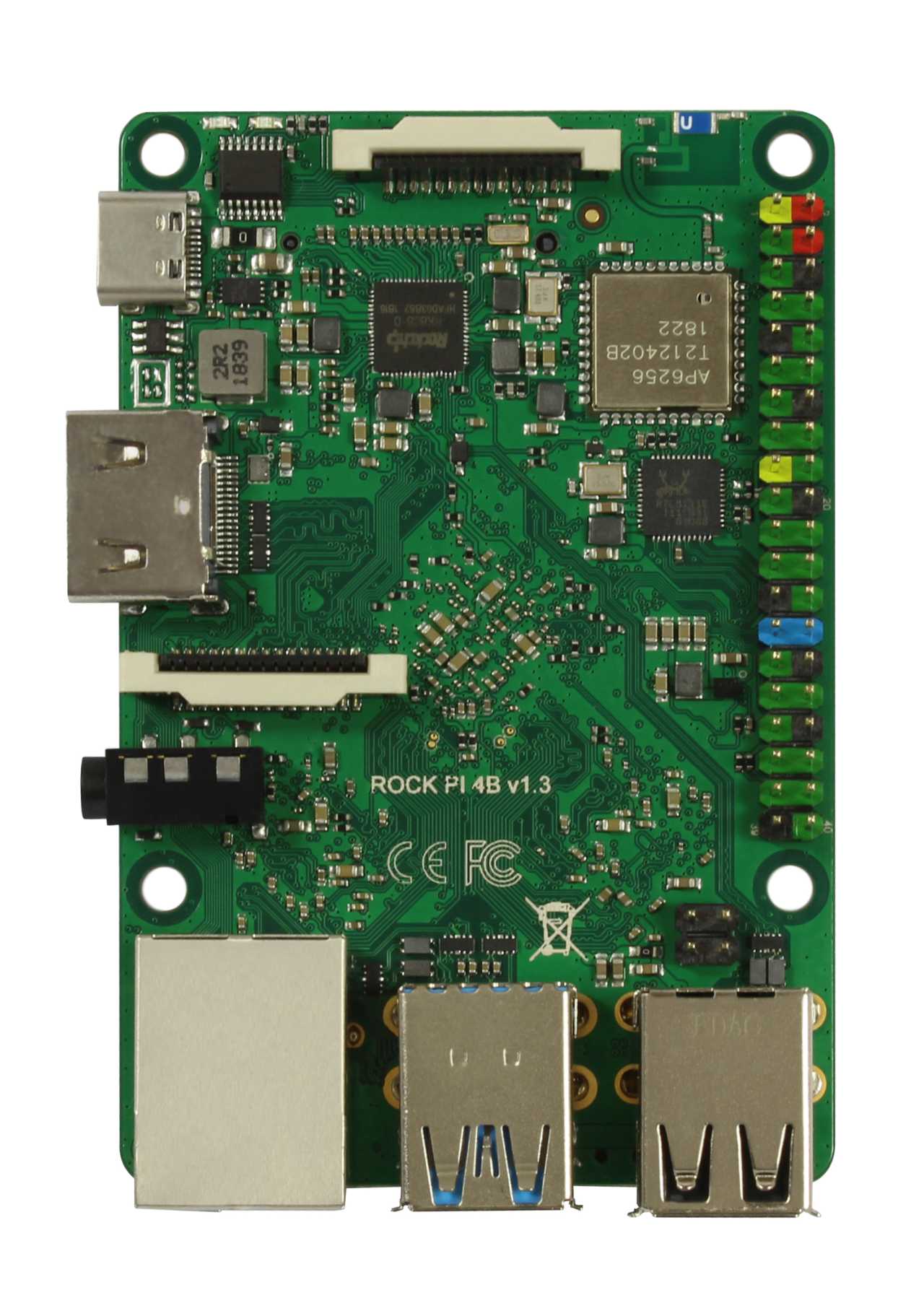

Rock Pi 4 Model A 4GB (ohne WLAN/Bluetooth und PoE) Rockchip RK3399Prozessor64bit6-core Dual Cortex-A72 mit 1.8Ghz Quad Cortex-A53 mit 1.4Ghz GPU  Mali T860MP4 GPU, unterstützt OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. Memory LPDDR4 4GB 64bit dual channel LPDDR4@3200Mb/s, 4GB Storage eMMCModul Optionales industrietaugliches high-performance eMMC Modul, 8G/16G/32G/64G/128G erhältlich Micro SD card uSD Slot unterstützt bis zu 128G uSD Karten M.2 SSD M.2 Anschluss unterstützt bis zu 2T M.2 NVME SSD Display HDMI HDMI 2.0 bis zu 4k@60 Peripherie MIPI DSI 2 lanes via FPC Connector HDMI und MIPI DSI funktioniert gleichzeitig, unterstützt mirror mode und extend mode. Audio 3.5mm Klinke mit Mikrofon-Unterstützung HD Codec, unterstützt bis zu 24-bit/96kHz Audio Kamera MIPI CSI MIPI CSI 2 Lanes via FPC Connector, unterstützt bis zu 800MP Kameras USB 3.0 OTG x1 Hardware Switch für host/device switch, oben USB 3.0 HOST x1 dedizierter USB3.0 Channel, unten USB 2.0 HOST x2 LAN GbE LAN  IO 40-pinErweiterungsheader : - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Sonstige RTC Batterieanschluss für Zeitbackup (optional) Power USB PD Support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 Adapter, 9V/2A, 12V/1.5A Maße 85mm x 54mm

Rock Pi 4 Model A 1GB (ohne WLAN/Bluetooth) Rockchip RK3399Processor64bithexacoreprocessor Dual Cortex-A72, freqency 1.8Ghz with quad Cortex-A53, frequency 1.4Ghz GPU  Mali T860MP4 gpu, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. Memory LPDDR4 64bit dual channel LPDDR4@3200Mb/s, 2GB Storage eMMCmodule Optional industrial compatible high performance eMMC module, 8G/16G/32G/64G/128G available Micro SD card uSD slot supports up to 128G uSD card M.2 SSD M.2 connector supports up to 2T M.2 NVME SSD Display HDMI HDMI 2.0 up to 4k@60 Peripherie MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 800MP camera USB 3.0 OTG x1 hardware switch for host/device switch, upper one USB 3.0 HOST x1 dedicated USB3.0 channel, lower one USB 2.0 HOST x2 LAN GbE LAN  - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others RTC battery connector for time backup(optional) Power USB PD Support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 85mm x 54mm

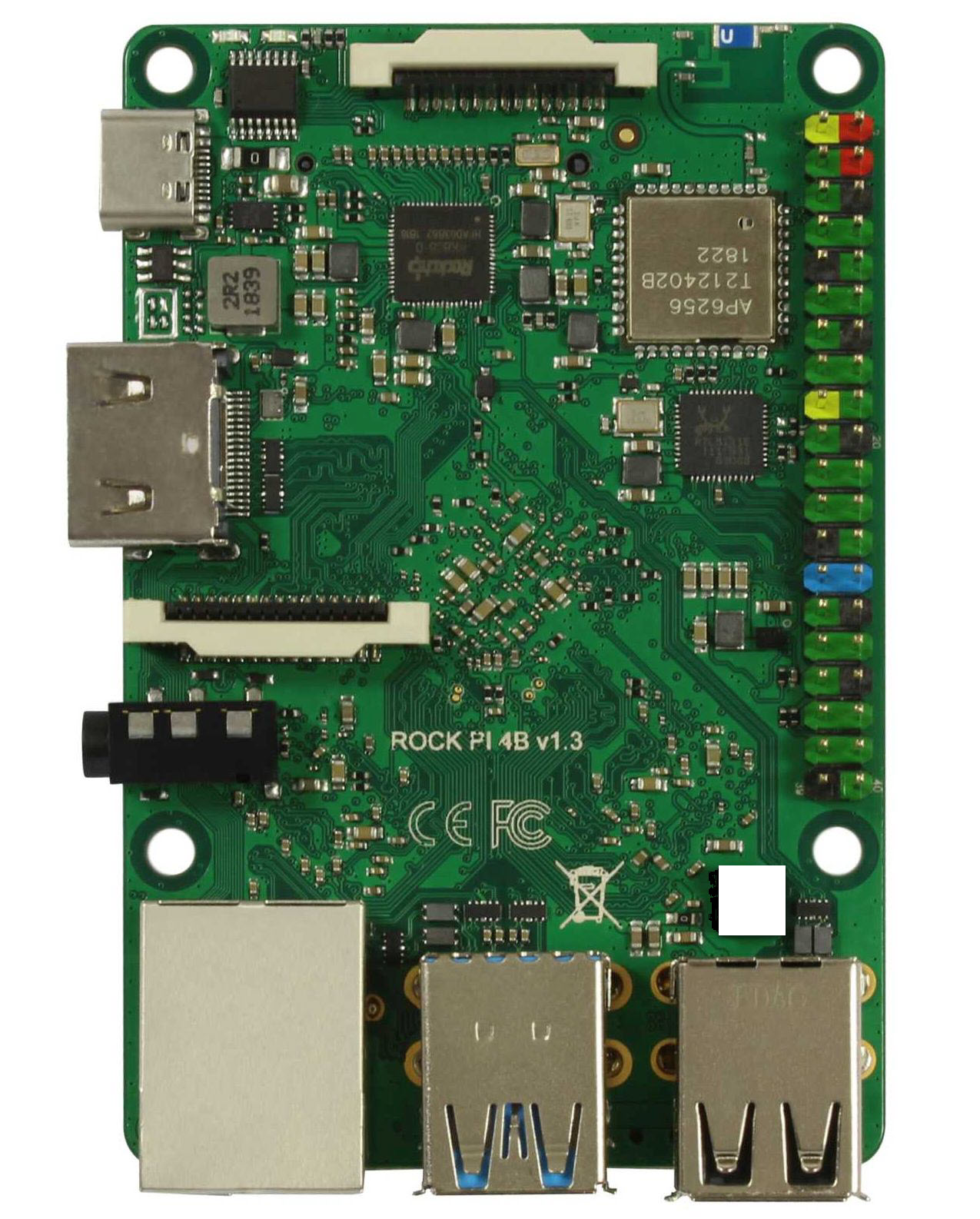

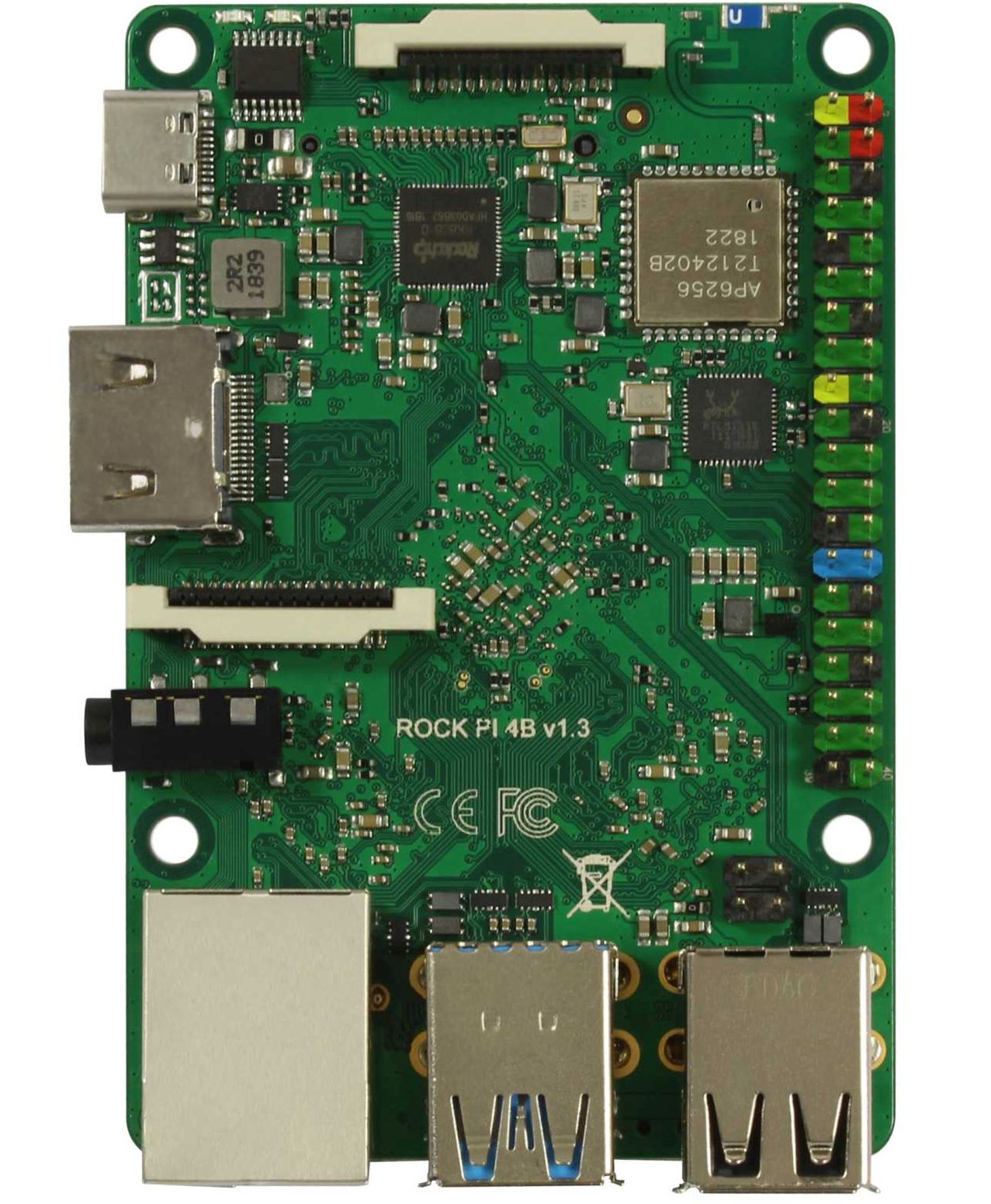

Rock Pi 4 Model B 4GB (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0) mit UFL Anschluss für ext. Antenne (176996) Rockchip RK3399Processor64bithexacoreprocessor Dual Cortex-A72, freqency 1.8Ghz with quad Cortex-A53, frequency 1.4Ghz GPU  Mali T860MP4 gpu, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. Memory LPDDR4 64bit dual channel LPDDR4@3200Mb/s, 4GB Storage eMMCmodule Optional industrial compatible high performance eMMC module, 8G/16G/32G/64G/128G available Micro SD card uSD slot supports up to 128G uSD card M.2 SSD M.2 connector supports up to 2T M.2 NVME SSD Display HDMI HDMI 2.0 up to 4k@60 Peripherie MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 800MP camera USB 3.0 OTG x1 hardware switch for host/device switch, upper one USB 3.0 HOST x1 dedicated USB3.0 channel, lower one USB 2.0 HOST x2 Ethernet GbE Network Wireless 802.11 ac wifi 2,4/5GHz Bluetooth 5.0 LAN GbE LAN with PoE support additional HAT is required for powering from PoE IO 40-pinexpansionheader : - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others RTC battery connector for time backup(optional) Power USB PD Support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 85mm x 54mm

Rock Pi 4 Model B 2GB (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0) mit UFL Anschluss für ext. Antenne (176996) Rockchip RK3399Processor64bithexacoreprocessor Dual Cortex-A72, freqency 1.8Ghz with quad Cortex-A53, frequency 1.4Ghz GPU  Mali T860MP4 gpu, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. Memory LPDDR4 64bit dual channel LPDDR4@3200Mb/s, 2GB Storage eMMCmodule Optional industrial compatible high performance eMMC module, 8G/16G/32G/64G/128G available Micro SD card uSD slot supports up to 128G uSD card M.2 SSD M.2 connector supports up to 2T M.2 NVME SSD Display HDMI HDMI 2.0 up to 4k@60 Peripherie MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 800MP camera USB 3.0 OTG x1 hardware switch for host/device switch, upper one USB 3.0 HOST x1 dedicated USB3.0 channel, lower one USB 2.0 HOST x2 Ethernet GbE Network Wireless 802.11 ac wifi 2,4/5GHz Bluetooth 5.0 LAN GbE LAN with PoE support additional HAT is required for powering from PoE IO 40-pinexpansionheader : - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others RTC battery connector for time backup(optional) Power USB PD Support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 85mm x 54mm

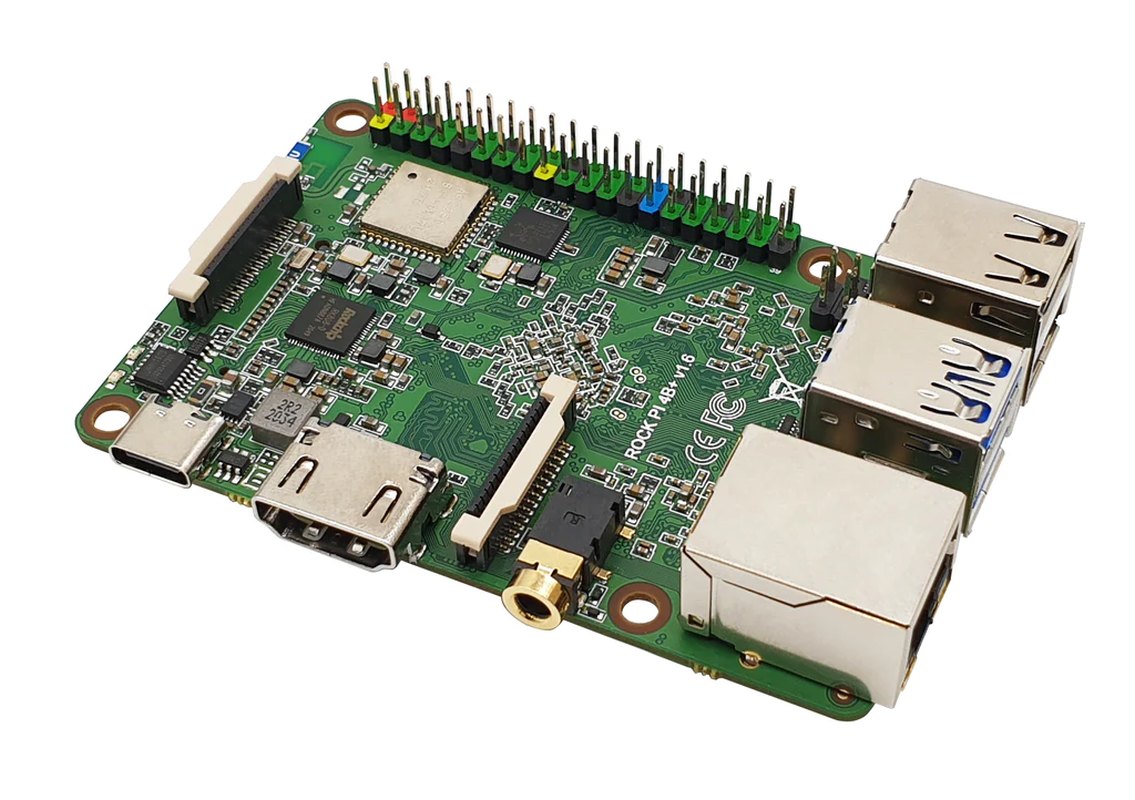

Rock Pi 4+ Model B OP1 2GB/16GB (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0) mit UFL Anschluss für ext. Antenne (176996) Rockchip OP1 64bit hexa core based SBC Small form-factor, rich feature set, outstanding design and performance. Rock Pi 4 is the perfect choice for your personal or business oriented projects. Rock Pi 4B+ product details OP164bithexacoreprocessor Dual Cortex-A72 (up to 2.0Ghz) plus quad Cortex-A53 (up to 1.5Ghz) Harvard Superscalar processor cores GPU  Mali T860MP4 GPU, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. Memory LPDDR4 64bit dual channel LPDDR4@3200Mb/s, 2GB or 4GB SPI Flash nicht im Lieferumfang! Wifi/BT Antenna Wifi/BT with external antenna support* *an uFL connector must be soldered on the board, which will then disable the on board antenna. Connector and soldering service available in the store! Onboard eMMCmodule Industrial level high performance eMMC storage, 16G/32G/64G/128G available Micro SD card uSD slot supports up to 128G uSD card M.2 SSD M.2 connector supports up to 2T M.2 NVME SSD note: M.2 extension board plus heat-sink is recommended for proper mounting on Rock Pi 4 "+" Display HDMI HDMI 2.0 up to 4k@60 Peripherie MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic with improved mechanics HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera USB 3.0 OTG x1 hardware switch for host/device switch, upper one USB 3.0 HOST x1 dedicated USB3.0 channel, lower one USB 2.0 HOST x2 Ethernet GbE Network Wireless 802.11 ac wifi 2,4/5GHz Bluetooth 5.0 LAN GbE LAN with PoE support additional HAT is required for powering via PoE IO 40-pinexpansionheader : - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others RTC battery connector for time backup Power USB PD Support USB Type C PD 2.0, 9V/2A, 12V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 85mm x 54mm Essentials You Need ROCK PI 4 Model A or Model B / B+ / OP1 PD/QC compliant power adapter with USB- C port equal or larger than 15W Keyboard &amp Mouse Monitor with HDMI input Heat Sink  optional M.2 extension board ______________________________________________________ Additional information &amp Setup instructions https://wiki.radxa.com/Rockpi4 ______________________________________

Rock Pi 4+ Model B OP1 4GB/128GB (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0) mit UFL Anschluss für externe Antenne (176996) Rockchip OP1 64bit hexa core based SBC Small form-factor, rich feature set, outstanding design and performance. Rock Pi 4 is the perfect choice for your personal or business oriented projects. Rock Pi 4B+ product details OP164bithexacoreprocessor Dual Cortex-A72 (up to 2.0Ghz) plus quad Cortex-A53 (up to 1.5Ghz) Harvard Superscalar processor cores GPU  Mali T860MP4 GPU, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. Memory LPDDR4 64bit dual channel LPDDR4@3200Mb/s, 2GB or 4GB SPI Flash nicht im Lieferumfang! Wifi/BT Antenna Wifi/BT with external antenna support* *an uFL connector must be soldered on the board, which will then disable the on board antenna. Connector and soldering service available in the store! Onboard eMMCmodule Industrial level high performance eMMC storage, 16G/32G/64G/128G available Micro SD card uSD slot supports up to 128G uSD card M.2 SSD M.2 connector supports up to 2T M.2 NVME SSD note: M.2 extension board plus heat-sink is recommended for proper mounting on Rock Pi 4 "+" Display HDMI HDMI 2.0 up to 4k@60 Peripherie MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic with improved mechanics HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera USB 3.0 OTG x1 hardware switch for host/device switch, upper one USB 3.0 HOST x1 dedicated USB3.0 channel, lower one USB 2.0 HOST x2 Ethernet GbE Network Wireless 802.11 ac wifi 2,4/5GHz Bluetooth 5.0 LAN GbE LAN with PoE support additional HAT is required for powering via PoE IO 40-pinexpansionheader : - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others RTC battery connector for time backup Power USB PD Support USB Type C PD 2.0, 9V/2A, 12V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 85mm x 54mm Essentials You Need ROCK PI 4 Model A or Model B / B+ / OP1 PD/QC compliant power adapter with USB- C port equal or larger than 15W Keyboard &amp Mouse Monitor with HDMI input Heat Sink  optional M.2 extension board ______________________________________________________ Additional information &amp Setup instructions https://wiki.radxa.com/Rockpi4 ______________________________________

Rock Pi 4+ Model B OP1 4GB/64GB (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0) mit UFL Anschluss für externe Antenne (176996) Rockchip OP1 64bit hexa core based SBC Small form-factor, rich feature set, outstanding design and performance. Rock Pi 4 is the perfect choice for your personal or business oriented projects. Rock Pi 4B+ product details OP164bithexacoreprocessor Dual Cortex-A72 (up to 2.0Ghz) plus quad Cortex-A53 (up to 1.5Ghz) Harvard Superscalar processor cores GPU  Mali T860MP4 GPU, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. Memory LPDDR4 64bit dual channel LPDDR4@3200Mb/s, 2GB or 4GB SPI Flash nicht im Lieferumfang! Wifi/BT Antenna Wifi/BT with external antenna support* *an uFL connector must be soldered on the board, which will then disable the on board antenna. Onboard eMMCmodule Industrial level high performance eMMC storage, 16G/32G/64G/128G available Micro SD card uSD slot supports up to 128G uSD card M.2 SSD M.2 connector supports up to 2T M.2 NVME SSD note: M.2 extension board plus heat-sink is recommended for proper mounting on Rock Pi 4 "+" Display HDMI HDMI 2.0 up to 4k@60 Peripherie MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic with improved mechanics HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera USB 3.0 OTG x1 hardware switch for host/device switch, upper one USB 3.0 HOST x1 dedicated USB3.0 channel, lower one USB 2.0 HOST x2 Ethernet GbE Network Wireless 802.11 ac wifi 2,4/5GHz Bluetooth 5.0 LAN GbE LAN with PoE support additional HAT is required for powering via PoE IO 40-pinexpansionheader : - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others RTC battery connector for time backup Power USB PD Support USB Type C PD 2.0, 9V/2A, 12V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 85mm x 54mm Essentials You Need ROCK PI 4 Model A or Model B / B+ / OP1 PD/QC compliant power adapter with USB- C port equal or larger than 15W Keyboard &amp Mouse Monitor with HDMI input Heat Sink  optional M.2 extension board ______________________________________________________ Additional information &amp Setup instructions https://wiki.radxa.com/Rockpi4 ______________________________________

Rock Pi 4+ Model B OP1 4GB/32GB (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0) mit UFL Anschluss für externe Antenne (176996) Rockchip OP1 64bit hexa core based SBC Small form-factor, rich feature set, outstanding design and performance. Rock Pi 4 is the perfect choice for your personal or business oriented projects. Rock Pi 4B+ product details OP164bithexacoreprocessor Dual Cortex-A72 (up to 2.0Ghz) plus quad Cortex-A53 (up to 1.5Ghz) Harvard Superscalar processor cores GPU  Mali T860MP4 GPU, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. Memory LPDDR4 64bit dual channel LPDDR4@3200Mb/s, 2GB or 4GB SPI Flash nicht im Lieferumfang! Wifi/BT Antenna Wifi/BT with external antenna support* *an uFL connector must be soldered on the board, which will then disable the on board antenna. Connector and soldering service available in the store! Onboard eMMCmodule Industrial level high performance eMMC storage, 16G/32G/64G/128G available Micro SD card uSD slot supports up to 128G uSD card M.2 SSD M.2 connector supports up to 2T M.2 NVME SSD note: M.2 extension board plus heat-sink is recommended for proper mounting on Rock Pi 4 "+" Display HDMI HDMI 2.0 up to 4k@60 Peripherie MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic with improved mechanics HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera USB 3.0 OTG x1 hardware switch for host/device switch, upper one USB 3.0 HOST x1 dedicated USB3.0 channel, lower one USB 2.0 HOST x2 Ethernet GbE Network Wireless 802.11 ac wifi 2,4/5GHz Bluetooth 5.0 LAN GbE LAN with PoE support additional HAT is required for powering via PoE IO 40-pinexpansionheader : - 1 x UART- 2 x SPI bus- 2 x I2C bus- 1 x PCM/I2S- 1 x SPDIF- 1 x PWM- 1 x ADC- 6 x GPIO- 2 x 5V DC power in- 2 x 3.3V power pin Others RTC battery connector for time backup Power USB PD Support USB Type C PD 2.0, 9V/2A, 12V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 85mm x 54mm Essentials You Need ROCK PI 4 Model A or Model B / B+ / OP1 PD/QC compliant power adapter with USB- C port equal or larger than 15W Keyboard &amp Mouse Monitor with HDMI input Heat Sink  optional M.2 extension board ______________________________________________________ Additional information &amp Setup instructions https://wiki.radxa.com/Rockpi4 ______________________________________

Rockchip OP1 64bit hexa core based SBC Small form-factor, rich feature set, outstanding design and performance. Rock Pi 4+ is the perfect choice for your personal or business oriented projects. Rock Pi 4B+ product details OP164bithexacoreprocessor Dual Cortex-A72 (up to 2.0Ghz) plus quad Cortex-A53 (up to 1.5Ghz) Harvard Superscalar processor cores GPU  Mali T860MP4 GPU, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. Memory LPDDR4 64bit dual channel LPDDR4@3200Mb/s, 2GB or 4GB SPI Flash nicht im Lieferumfang! Wifi/BT Antenna Wifi/BT with external antenna support* *an uFL connector must be soldered on the board, which will then disable the on board antenna. Connector and soldering service available in the store! Onboard eMMCmodule Industrial level high performance eMMC storage, 16G/32G/64G/128G available Micro SD card uSD slot supports up to 128G uSD card M.2 SSD M.2 connector supports up to 2T M.2 NVME SSD note: M.2 extension board plus heat-sink is recommended for proper mounting on Rock Pi 4 "+" Display HDMI HDMI 2.0 up to 4k@60 Peripherie MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic with improved mechanics HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera USB 3.0 OTG x1 hardware switch for host/device switch, upper one USB 3.0 HOST x1 dedicated USB3.0 channel, lower one USB 2.0 HOST x2 Ethernet GbE Network Wireless 802.11 ac wifi 2,4/5GHz Bluetooth 5.0 LAN GbE LAN with PoE support additional HAT is required for powering via PoE IO 40-pinexpansionheader : - 1 x UART- 2 x SPI bus- 2 x I2C bus- 1 x PCM/I2S- 1 x SPDIF- 1 x PWM- 1 x ADC- 6 x GPIO- 2 x 5V DC power in- 2 x 3.3V power pin Others RTC battery connector for time backup Power USB PD Support USB Type C PD 2.0, 9V/2A, 12V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 85mm x 54mm Essentials You Need ROCK PI 4 Model A or Model B / B+ / OP1 PD/QC compliant power adapter with USB- C port equal or larger than 15W Keyboard &amp Mouse Monitor with HDMI input Heat Sink  optional M.2 extension board ______________________________________________________ Additional information &amp Setup instructions https://wiki.radxa.com/Rockpi4 ______________________________________
