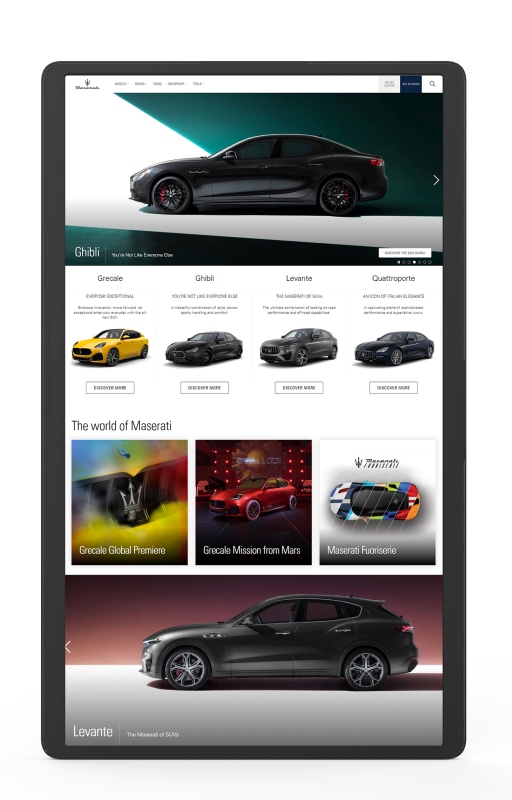

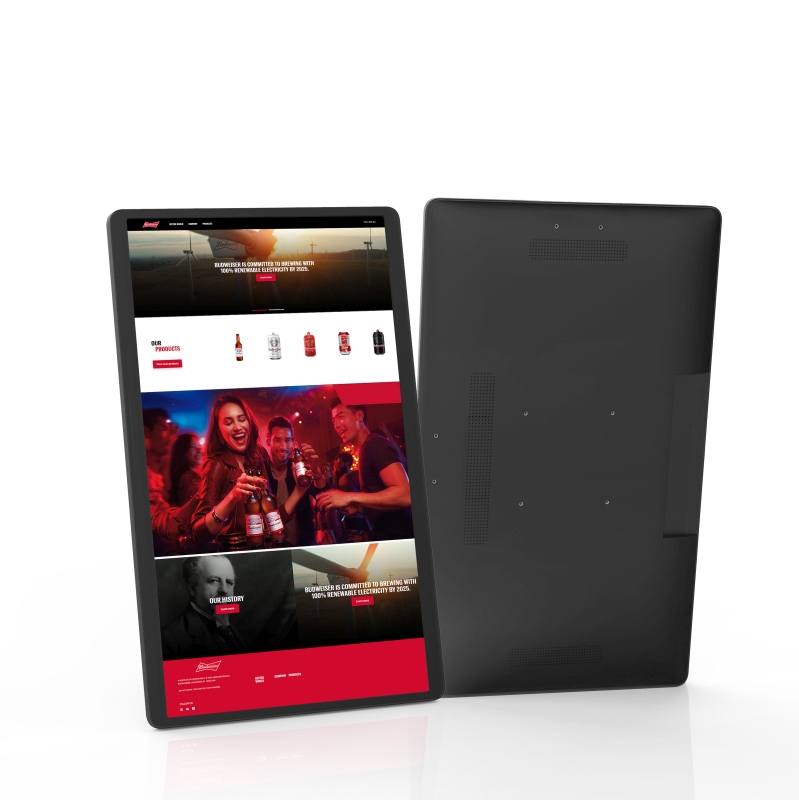

ALLNET High Performance Display 24 Zoll, Android 13, RK3588S2, HDMI In, Farbe schwarz ohne PoE
653,95 €*
Versandfertig in 1-2 Werktagen
Lieferzeit ca. 1-3 Werktage
Allnet Display 24 Zoll, TV Style, Interaktives Touch Kioskterminal, Android 13, RK3588, HDMI In, Farbe schwarz, ohne PoE

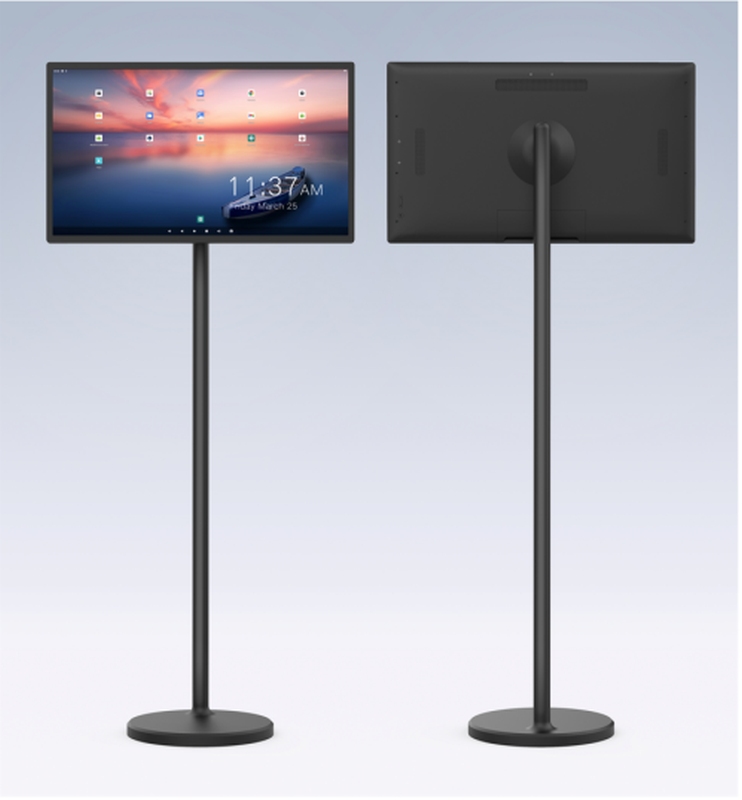

Standfuß mit integriertem Akku optional und nicht im Lieferumfang!!! (siehe Zubehör)
- Hochperfomanter RK3588 Chipsatz Octa Core (4xA73+4xA55)
- 8GB Arbeitsspeicher
- Wifi 6 Gigabit Wlan
- NFC (optional ext. USB NFC Modul zur Fixierung an der Seite)
- Android 13 & Linux
- Incell Touchoberfläche
- HDMI Eingang für ext. Geräte
| System | CPU | RK3588 Quad core cortex A55+Quad core cortex A76 |
| RAM | 8GB | |
| Internal memory | 32GB | |
| Operation system | Android 12 | |
| Display | Panel Size | 24"LCD |
| Panel Type | IPS | |
| Resolution | 1920*1080, 3840x2160 | |
| Display Colors | 16.7M Colors | |
| Color Gamut | sRGB 99% | |
| Display mode | Normally black | |
| Viewing angle | 85/85/85/85(L/R/U/D) | |
| Contrast ratio | 1000:1 | |
| Luminance | 250cdm2 | |
| Aspect Ratio | 16:9 | |
| Response Time | 14ms | |
| Back-light Type | Eled | |
| Touch | Model Type | Incell Touch |
| Number of points | 10-Point | |
| Interface for touch | HID-USB | |
| Network | WiFi | 802.11b/g/n/a/ac/ax (WiFi 6) |
| Ethernet | 100M/1000M | |
| Bluetooth | Bluetooth 5.0 | |
| Interface | Power Jack | DC power input |
| MIC IN | External microphone input | |
| Earphone Output | 3.5mm earphone output | |
| Type-c | Full Function ( Except for charging function ) | |
| SIM Slot | no | |
| USB | Standard USB 2.0 Host | |
| USB | USB 3.0 | |
| USB | USB 3.0 | |
| HDMI IN | Support HDMI 2.0 | |
| RJ45 | Ethernet interface | |
| Other | Product Colors | white/Black |
| VESA | 100mm*100mm | |
| Button | Power/Vol+/Vol- | |
| Other Power | Speaker | 4O*5W*2 |
| Microphone | Built in dual Microphone , Support noise reduction and echo cancellation | |
| NFC | no | |
| G-sensor | Support 90 degrees | |
| Camera | no | |
| Language | Multi-language | |
| Certificates | CE/FCC | |
| Power Type | Adapter | |
| Input Voltage | DC 12V/4A | |
| Power consumption | =25W | |
| Working Surrounding Accessories | Storage Temperature | -20?---60? |
| Working Temperature | 0?---50? 10~90%RH | |
| Adapter | Adapter,12V/4A | |
| Working Surrounding | User manual | yes |
| Arbeitsspeicher (RAM): | 4 |
|---|---|
| Betriebssystem: | Android 12 |
| Diagonale: | 24 |
| Einsatzbereiche: | indoor |
| Hauptspeicher: | 16 |
| Produktart: | Display |
